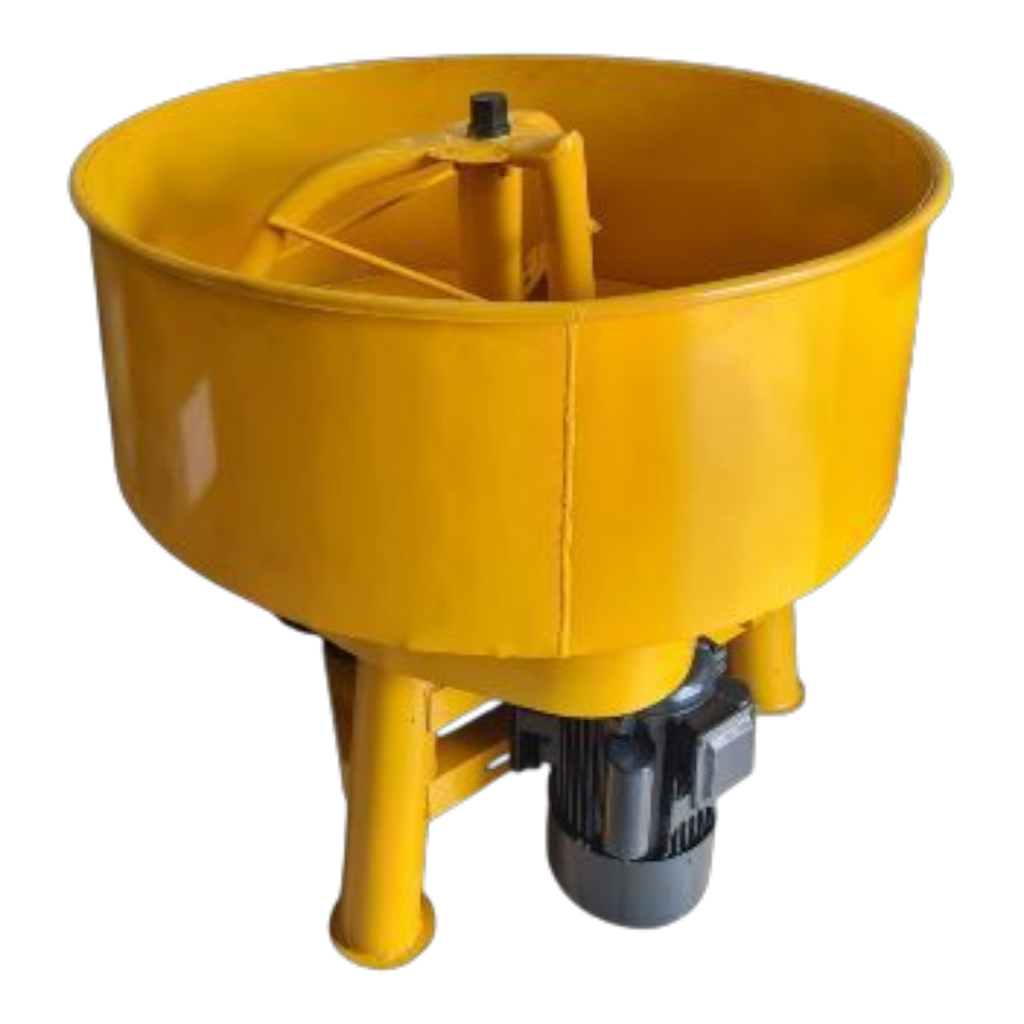

350L Electric Pan Mixer

Pan Mixer 350L (Single Phase 220V)

The 350L Pan Mixer is a powerful and efficient mixing solution designed for brick-making, precast concrete production, and general construction applications. Powered by a 4kW single-phase motor, this mixer delivers fast, consistent mixing of concrete, mortar, and other construction materials, helping to improve productivity and material quality.

With a 350-litre capacity, the pan mixer can comfortably mix the equivalent of 4 wheelbarrows of river sand and one bag of cement in a single batch, making it ideal for both small and medium-sized production facilities.

Product Specifications

• Motor: 220V Single Phase

• Power: 4kW @ 50Hz

• Motor Speed: 1450 RPM

• Mixing Time: 3–5 Minutes

• Impeller Speed: 35 RPM

• Noise Level: 78dB

• Capacity: 350 Litres

• Weight: 300kg

• Dimensions: 1200mm × 1110mm × 1080mm

Key Benefits

• High-performance 4kW electric motor for reliable operation

• Fast mixing cycle of approximately 3–5 minutes

• Produces consistent, homogeneous concrete and mortar mixes

• Large 350L capacity improves productivity

• Ideal for brick-making, block production, and precast concrete manufacturing

• Robust steel construction designed for continuous commercial use

• Operates on standard 220V single-phase electricity

Common Applications

• Brick and block manufacturing

• Precast concrete production

• Paver manufacturing

• Kerb and lintel production

• Construction and civil engineering projects

• Concrete and mortar mixing

Maintenance Recommendations

• Clean the mixing pan thoroughly after each use to prevent hardened concrete build-up.

• Regularly inspect and tighten all bolts, fasteners, and moving components.

• Lubricate bearings and moving parts according to the manufacturer's recommendations.

• Inspect electrical components and connections regularly to ensure safe operation.

• Store the mixer in a dry, covered area when not in use to protect it from the elements.

Built for durability and dependable performance, the 350L Pan Mixer is an excellent investment for businesses requiring fast, efficient, and consistent concrete mixing for a wide range of construction and precast concrete applications.
